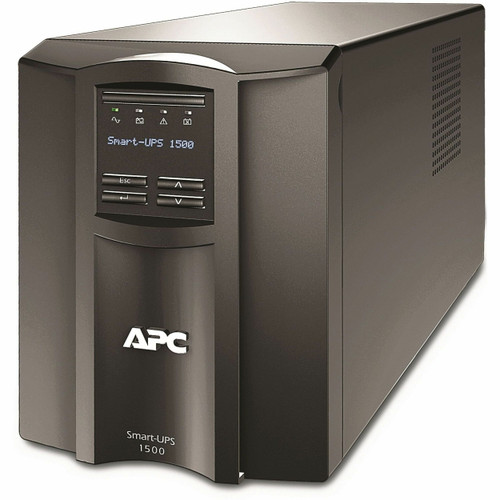

APC by Schneider Electric Smart-UPS 1500VA LCD 120V with SmartConnect - 1440 VA/1000 W - 120 V AC, 110 V AC, 127 V AC - 7 Minute Stand-by Time - Tower - 8 x NEMA 5-15R SMARTCONNECT
Technical Specifications:
Output
- Output power capacity1.0 KWatts / 1.44 kVA
- Max Configurable Power (Watts)1.0 KWatts / 1.44 kVA
- Nominal Output Voltage120V
- Output Voltage DistortionLess than 5%
- Output Frequency (sync to mains)50/60Hz +/- 3 Hz
- Other Output Voltages110, 127
- TopologyLine Interactive
- Waveform typeSine wave
- Output Connections(8) NEMA 5-15R (Battery Backup)
- Transfer Time6ms typical : 10ms maximum
Input
- Nominal Input Voltage120V
- Input frequency50/60 Hz +/- 3 Hz (auto sensing)
- Input ConnectionsNEMA 5-15P
- Cord Length6ft ( 1.83meters )
- Input voltage range for main operations82 - 144V
- Input voltage adjustable range for mains operation75 - 154V
- Number of Power Cords1
- Other Input Voltages110, 127
Batteries & Runtime
- Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Typical recharge time3hour(s)
- Replacement BatterySMT1500NC
- Expected Battery Life (years)3 - 5
- RBC Quantity1
- Interface Port(s)SmartSlot , USB
- Control panelMulti-function LCD status and control console
- Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
- Emergency Power Off (EPO)--
- Available SmartSlot™ Interface Quantity1
Surge Protection and Filtering
- Surge energy rating680Joules
- FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
- Maximum Height8.62inches ( 219mm , 21.9CM )
- Maximum Width6.73inches ( 171mm , 17.1CM )
- Maximum Depth17.28inches ( 439mm , 43.9CM )
- Net Weight54.23lbs. ( 24.6KG )
- Shipping weight59.92lbs. ( 27.18KG )
- Shipping Height12.99inches ( 330mm , 33.0CM )
- Shipping Width12.99inches ( 330mm , 33.0CM )
- Shipping Depth23.23inches ( 590mm , 59.0CM )
- ColorBlack
- Units per Pallet12.0
Environmental
- Operating Temperature32 - 104 °F ( 0 - 40 °C )
- Operating Relative Humidity0 - 95 %
- Operating Elevation0-10000ft ( 0-3000meters )
- Storage Temperature-15 - 45 °C
- Storage Relative Humidity0 - 95 %
- Storage Elevation0-50000ft ( 0-15000meters )
- Audible noise at 1 meter from surface of unit45.0dBA
- Online thermal dissipation225.0BTU/hr
Conformance
- ApprovalsCSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
- Equipment protection policyLifetime : $150000
- Standard warranty3 years repair or replace (excluding battery) and 2 year for battery
Sustainable Offer Status
- RoHSCompliant
- REACHREACH: Contains No SVHCs
