Image may not exactly match the product.

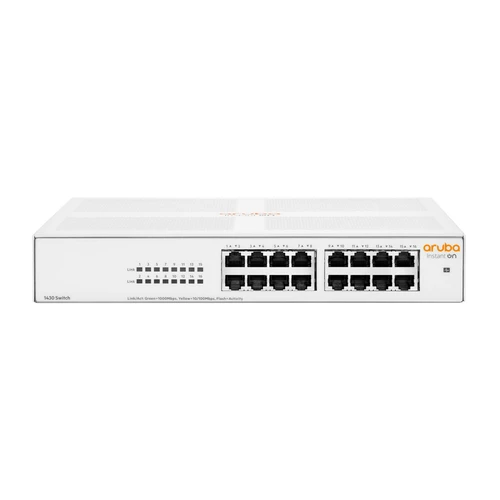

Aruba Instant On 1430 16G Switch - R8R47A

Calculated at Checkout
$119.99 $107.99
(You save $12.00 )

Image may not exactly match the product.


$119.99 $107.99
(You save $12.00 )
In Stock. Ships within 3 Business Days

Warranty Information
Limited Warranty: Lifetime Additional Warranty Information: 24 x 7 Chat Support for Entire Warranty Period

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.


Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budgetstrapped businesses.

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities - at an affordable price point - to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

The Aruba Instant On 1430 Switch Series includes seven switches in PoE and non-PoE configurations: one (1) 5-port, two (2) 8- port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. With the PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices. All switches are fan-less, making them ideal for acoustically sensitive areas, and unmanaged requiring no configuration (not managed by Aruba Instant On management).

Product Type:   Ethernet Switch

Technical Information

Features:   Fanless


Total Number of Network Ports:   16
Network (RJ-45):   Yes
Port/Expansion Slot Details:   16 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:   Twisted Pair
Ethernet Technology:   Gigabit Ethernet
Network Technology:   10/100/1000Base-T

Network & Communication

Layer Supported:   2
Networking Standards:   IEEE 802.3i
Networking Standards:   IEEE 802.1p
Networking Standards:   IEEE 802.1x
Networking Standards:   IEEE 802.3
Networking Standards:   IEEE 802.3ab
Networking Standards:   IEEE 802.3az
Networking Standards:   IEEE 802.3u
Networking Standards:   IEEE 802.3x
Networking Standards:   IEEE 802.3z

Management & Protocols

Manageable:   No

Power Description

PoE (RJ-45) Port:   No
Input Voltage:   120 V AC
Input Voltage:   230 V AC
Frequency:   50 Hz
Frequency:   60 Hz
Power Source:   Power Supply
Power Consumption:   7.90 W

Physical Characteristics

Compatible Rack Unit:   1U
Form Factor:   Rack-mountable
Form Factor:   Under Table
Form Factor:   Wall Mountable
Form Factor:   Cabinet Mount
Form Factor:   Surface Mount
Form Factor:   Table Top
Height:   1.7"
Width:   10.8"
Depth:   10.2"
Weight (Approximate):   3.80 lb


Package Contents:

  • Instant On 1430 16G Switch
  • 2-post Rack Kit
  • Brackets

Application/Usage:   Business


Limited Warranty:   Lifetime
Additional Warranty Information:   24 x 7 Chat Support for Entire Warranty Period
