PDU3EVN6G30B

Image may not exactly match the product.

Tripp Lite 10kW 3-Phase Monitored PDU W/LX Platform Interface, 200/208/240V Outlets (42 C13 & 6 C19), Touchscreen LCD, IEC-309 30A Blue, 0U, TAA - Power Distribution Unit - 10 KW - TAA Compliant - PDU3EVN6G30B

SKU:
PDU3EVN6G30B
Shipping:
Calculated at Checkout
$1,961.86 $1,063.82
(You save $898.04 )
PDU3EVN6G30B

Image may not exactly match the product.

Out of Stock.

Request a quote for re-stock information.

$1,961.86 $1,063.82
(You save $898.04 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 2 years
Product Line:
Tripp Lite
Product Type:
Power distribution unit
Installation Type:
Rack-mountable
Model:
10kW 3-Phase Monitored PDU w/LX Platform Interface, 200/208/240V Outlets (42 C13 & 6 C19), Touchscreen LCD, IEC-309 30A Blue, 0U, TAA
Input Voltage:
AC 200/208/240 V
Power Provided:
10 kW
Remote Management Interface:
Ethernet 10/100, USB

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Share:
  • 10kW 200/208/240V monitored PDU with 3-phase input
  • IEC 309 30A Blue (3P+E) plug with 6 ft. cord connects to compatible AC power source
  • Firmware upgrades support future product enhancements
  • Reports network data, including IP address, input current level per phase and output current per load bank with ñ1% billing-grade accuracy
  • Generates unique QR code for read-only access to PowerAlert Device Manager via mobile device
  • Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials

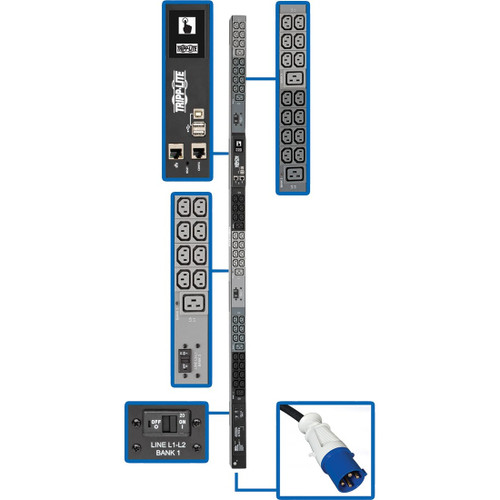

The PDU3EVN6G30B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for IT and industrial applications, it features 48 outlets - 42 C13, 6 C19 - with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 30A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ñ1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
