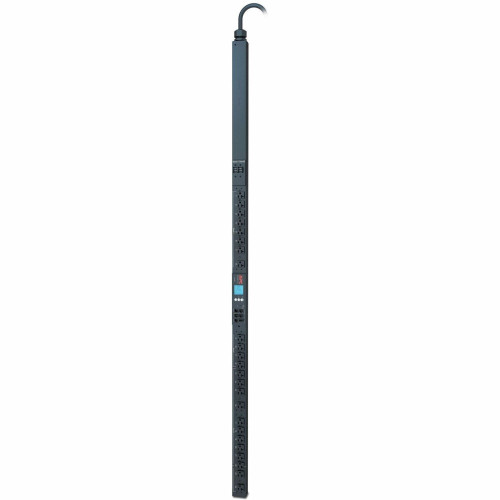

Image may not exactly match the product.

APC by Schneider Electric Rack PDU 2G, Switched, ZeroU, 20A, 100-120V, (24) 5-20R - AP8930

$39.00 (Fixed Shipping Cost)
$1,675.00 $1,040.14
(You save $634.86 )

Image may not exactly match the product.

Out of Stock.

Request a quote for re-stock information.

$1,675.00 $1,040.14
(You save $634.86 )
Currently out of stock, pre-order may be available

Warranty Information
2 Years

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8930
Manufacturer Website Address:
Brand Name: APC by Schneider Electric
Product Line: Switched Rack
Product Name: Switched Rack PDU
Marketing Information: APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Product Type: PDU
Technical Information
Input Receptacles: 1 x NEMA L5-20P
Output Receptacles: 24 x NEMA 5-20R
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (VA): 1920 VA
Input Current: 20 A
Physical Characteristics
Placement: Rack
Rack Height: 0U
Height: 70.5"
Width: 2.2"
Depth: 1.8"
Weight (Approximate): 14.37 lb
Package Contents:
  • Switched Rack PDU
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Serial Configuration Cable

Environmentally Friendly: Yes
Environmental Certification:
  • RoHS
  • WEEE

Limited Warranty: 2 Year
