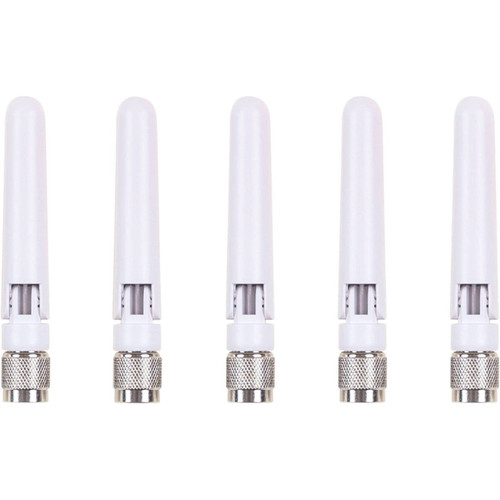

Cisco Meraki B Series Dipole Antenna for MR42E (5-Pack) MA-ANT-3-B5

SKU:
MA-ANT-3-B5
Shipping:
Calculated at Checkout
$169.59 $110.16
(You save $59.43 )

Image may not exactly match the product.

$169.59 $110.16
(You save $59.43 )
Availability:
In Stock. Ships Same Day If Ordered Before 3pm PT

Condition:
New

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Share:

Product Description

Dipole Antenna (3/5.7 dBi)

The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have APs installed on walls or uneven surfaces. This antenna is bendable. The price shown is for a single unit; the Dipole antenna can be purchased in units of 1, 5, or 6.

Technical Specifications

Electrical

  • Antenna type: Dipole
  • Frequency range: 2.400 – 2.500, 5.150 – 5.875 GHz Meraki MA-ANT-3-B5
  • Gain: 3 dBi (2.4) / 5.7 dBi (5)
  • Polarization: Linear, Vertical/Horizontal
  • Half power beamwidth / horizontal: omni
  • Half power beamwidth / vertical: 40°

Physical and Environmental

  • Dimensions: 3.51” x 0.57” (89.3 mm x 14.5 mm)
  • Weight: 0.71 oz (20.19 g)
  • Material: PC-ABS
  • Temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5% - 95%
  • Connector: RP-TNC

Warranty

  • 1 year hardware warranty included

Regulatory

  • Certified for use with MR42E: MA-ANT-3-B5 (5 pack)
  • Certified for use with MR53E: MA-ANT-3-B6 (6 pack)

Warranty Information

Cisco Meraki 1 Year Warranty
