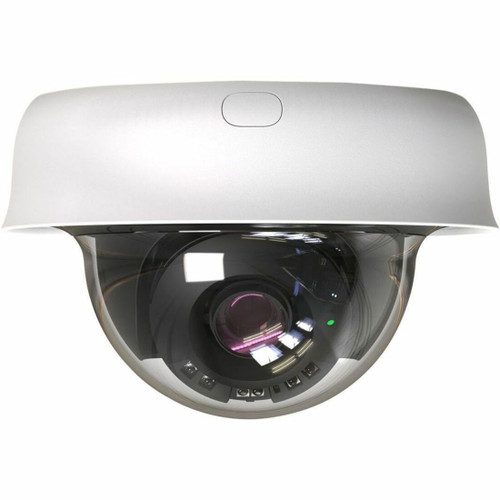

Cisco Meraki Indoor varifocal lens dome camera with up to 120 days of retention - MV23X-HW-NA

The Meraki MV23X-HW is a high-performance indoor varifocal dome camera designed for crystal-clear 4K video recording and advanced analytics. Equipped with 1TB of high-endurance storage, the MV23X-HW offers up to 120 days of intelligently optimized video retention, providing a powerful surveillance solution with minimal physical infrastructure requirements. Part of Meraki’s smart camera line, this camera combines physical security with advanced features like real-time object detection, motion analysis, and machine learning.

Its cloud-augmented edge storage architecture reduces the need for extensive on-premises hardware, making it ideal for large-scale deployments or distributed environments. The MV23X-HW is designed for easy installation and offers versatile mounting options, making it suitable for a variety of indoor monitoring applications, including entrances, exits, and general perimeter surveillance.

Product Highlights

• Varifocal lens indoor dome camera with 1TB high-endurance storage.
• 4K ultra-high-definition video capture for exceptional detail.
• Up to 120 days of retention with intelligent motion-based indexing for efficient storage use.
• Night vision with IR illumination effective up to 30 meters (98 feet).
• Machine-learning analytics for real-time object detection, classification, and tracking.
• Advanced motion search and heatmap capabilities for enhanced insights.
• Cloud-augmented edge storage minimizes physical infrastructure needs.
• Built-in security features: secure boot, signed firmware, and hardware security chip.
• NDAA Compliant for use in sensitive environments.
• Flexible mounting options for wall, ceiling, or corner installations.

Specifications

Camera

• Image Sensor: 1/2.8” 8.41MP progressive CMOS sensor (3854x2176).
• Storage: 1TB high-endurance solid-state storage (MV23X-HW).
• Lens: Varifocal, 3.0 - 9.0 mm, f/1.6-2.9 aperture.
• Field of View (FoV): Horizontal 36° - 112°.
• Shutter Speed: 1/30 second to 1/32,000 second.
• Day/Night Capabilities: Automatic transition with built-in IR illuminators, effective up to 30 meters (98 feet).

Video

• Resolution Options:
  • 4K (3840x2160) at up to 15 fps with H.264 Smart Codec.
  • 4MP (2560x1440) at up to 24 fps with H.264 Smart Codec.
  • 1080p (1920x1080) at up to 24 fps with H.264 Smart Codec.
• High Dynamic Range (HDR) for improved image quality in challenging lighting conditions.
• Cloud-augmented edge storage allows local video storage and cloud-based metadata management.
• Optimized Retention: Scheduling and motion-based retention settings for up to 120 days of video.
• Audio: Built-in four microphones for optional audio recording.

DORI Specifications (Maximum Resolution)

Networking & Wireless

• Ethernet: 1x 10/100/1000BASE-T Ethernet (RJ45).
• Wi-Fi:
  • 2.4 GHz 802.11b/g/n, 5 GHz 802.11a/n/ac.
  • Supports 20, 40, 80 MHz channels (802.11ac).
• DSCP Traffic Marking: Supports quality of service (QoS) for prioritized traffic management.

Power

• Power Consumption: Max 15.4W via 802.3af PoE.
• Additional Power Input: Supports 12VDC/24VAC terminal power inputs.

Environmental

• Operating Temperature: 0°C to 45°C (32°F to 113°F).

Security

• Full Disk Encryption: AES 256-bit encryption to secure stored video.
• TLS Certificates: Auto-purchased, publicly signed certificates for secure communication.
• Management: Supports two-factor authentication for secure user access.
• Wireless Security: WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS encryption.

Physical Characteristics

• Dimensions: 148.54 mm (diameter) x 95.80 mm (height).
• Weight: 840 grams.
• Ports: Female RJ45 Ethernet connector.
• LED Indicators: Multicolor, multifunction LED for device status.
• Buttons: External microphone switch and reset button for device reset.

Warranty

• Five-year hardware warranty with advanced replacement coverage.

Licensing

• Licensing Options: Available for 1, 3, 5, 7, or 10 years (LIC-MV-XYR).

Accessories

• Mounting Options:
  • MA-MNT-MV-18: Mounting plate replacement kit.
  • MA-MNT-MV-28: Pole mount.
  • MA-MNT-MV-38: Wall-mount L-bracket.
  • MA-MNT-MV-48: Wall-mount arm bracket.
  • MA-MNT-MV-58: Conduit back box.
  • MA-MNT-MV-68: T-rail adapter.
  • MA-MNT-MV-88: Corner mount.
  • MA-MNT-MV-78: Telescopic mount.
• PoE Injector: MA-INJ-4 for 802.3at power injection.

In the Box

• Quick-start and installation guide.
• MV23X camera hardware.
• Wall-mounting kit.

Conclusion

The Meraki MV23X-HW Indoor Varifocal Lens Dome Camera delivers unparalleled clarity with 4K resolution and up to 120 days of intelligently optimized retention. It is the perfect solution for businesses and organizations seeking a high-end surveillance camera with advanced machine-learning capabilities, robust physical security, and easy scalability. Its flexible installation options and powerful analytics make it a versatile tool for a wide range of indoor monitoring applications.
