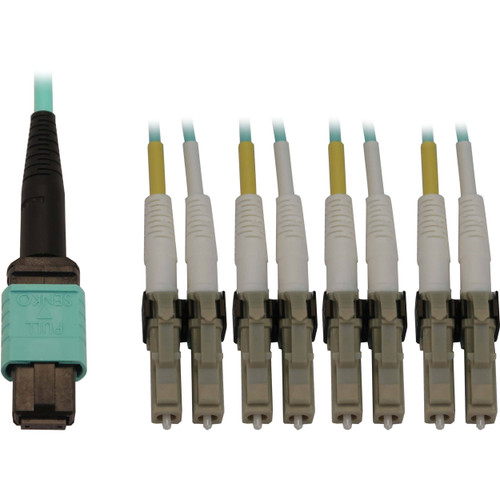

Tripp Lite 40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC To 4x Duplex LC/PC F/M), LSZH, Aqua, 5 M (16.4 Ft.) - Network Cable - 5 M - Aqua - N844X-05M-8L-P

SKU:
N844X-05M-8L-P
Shipping:
Calculated at Checkout
$256.00 $148.22
(You save $107.78 )

Image may not exactly match the product.

Out of Stock.

Request a quote for re-stock information.

$256.00 $148.22
(You save $107.78 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Product Line:
Tripp Lite
Network Cable Type:
Network cable
Left Connector Type:
MTP/MPO-12 multi-mode
Right Connector Type:
LC multi-mode
Color:
Aqua
Model:
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Aqua, 5 m (16.4 ft.)

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Share:
  • 12-fiber MTP/MPO connectors with 12x density of SC connectors
  • OM3-rated cable recommended for 400 Gb speeds up to 100 m (@ 850 nm)
  • Switchable connector ends allows to easily switch polarity
  • Allows for use of stacked LC adapters thus increasing population density
  • Aqua LSZH jacket allows fast, easy identification in a crowded switch or patch panel
  • This product is covered by a Lifetime limited warranty

As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This duplex multimode 50/125 OM3 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It is also backward compatible with 40 Gb and 100 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
The N844X-05M-8L-P cable features MTP/MPO to (x4) switchable LC Duplex connector ends on both sides of the cable providing the ability to switch polarity depending on your application. This can allow for stacked LC adapters, eliminating the need for dual zip cords and reduce overall bulk cabling in high density situations. The 12-fiber MTP/MPO connectors with 12x density of SC connectors freeing up circuit card and rack space for other cables. Additionally, the 2.0mm round cable design provides a thin diameter allowing the polarity to be switched without any tools. Just remove the clipped piece holding the connector ends together on each side, identify the send and receive ends and switch the polarity of those ends based on your application needs.
The OM3-rated cable has an aqua jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
