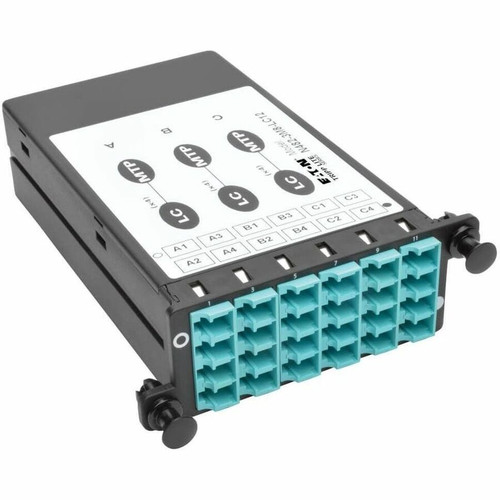

Eaton Tripp Lite Series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb (x3) 8-Fiber OM4 MTP/MPO (Male with Pins) to (x12) LC Duplex, Type-B Polarity - For Data 3 12 - N482-3M8-LC12
- SKU:
- N482-3M8-LC12
- Shipping:
- Calculated at Checkout
$994.26
$559.55
(You save
$434.71
)
Financing Available: Learn More!
Image may not exactly match the product.
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Hear What Our Customers Are Saying
What Sets Us Apart
Real Humans. Real Help.
Forget chasing down reps or emailing into the abyss. Get your own IT Concierge — a real human who stays with you from start to finish. One point of contact. Zero runaround.
Rapid-Fire Quotes, No Fluff
Under the gun? We turn around Cisco & Meraki quotes in record time — even complex builds. No waiting days for basic pricing.
👉
Get My Fast Quote
Free Solution Design with White Glove Engineers
Need to validate your BoM or double-check your plan? Our Cisco-certified engineers review it with you, optimize where needed, and catch gotchas before they cost you…all free.
We Don’t Just Sell Boxes. We Build Solutions.
Pre-config, licensing help, and install guidance — we make sure what you buy solves your problem, the first time.
Trade-In Credits Without the Headaches
Turn your old gear into instant quote credits. We can coordinate the recycling or destruction in an environmentally friendly and safe manner. Enjoy a smoother path to your upgrade with built-in savings.
Unlock Pricing Other Buyers Don't See
Get access to exclusive Cisco/Meraki incentives, special pricing tiers, and project-based discounts you won’t find anywhere else.
Want to skip the back and forth? Talk directly to a specialist and get expert guidance in under 30 minutes.
The N482-3M8-LC12 40 GB to 10 GB Breakout Cassette works in tandem with Tripp Lite's N482-01U or N482-02U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications.
The cassette's modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and snap in its retention clips to secure it. Plug LC patch cables, such as Tripp Lite's N820-01M-T cables, into the cassette using the cable's convenient push/pull tabs. MTP/MPO adapters are Type B key-up to key-up. Up to five N482-3M8-LC12 cassettes fit in the N482-01U 1U enclosure panel, and 14 cassettes fit in the N482-02U 2U chassis. Dust tabs protect unused ports from potential damage.
The N482-3M8-LC12 complies with IEEE 802.3ae(10 GbE) and ANSI T11.2(Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10 GB and 40 GB network equipment.
With factory-terminated connectors that reduce time and labor, the N482-3M8-LC12 is made from only the finest materials to ensure fast installations and optimal performance.
Features
Elegant, Simple Solution for 40 GB to 10 GB LC Cable Connections
- High-density fiber cassette for use with Tripp Lite N482-01U and N482-02U fiber enclosure panels
- Connect up to 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections
- Ideal for use with QSFP fabric switches to support 4 lanes parallel to 40 GB
- Supports 40 GbE internally using OM4 fiber optic cable
Simple Fiber Installations Save Time and Money
- Easy installation with no tools required
- Type B MTP/MPO key-up to key-up adapters
- Install up to 14 cassettes in N482-02U 2U chassis
- Install up to 5 cassettes in N482-01U 1U chassis
Easy to Modify, Upgrade or Expand Fiber Infrastructure by Adding or Swapping Cassettes
- Complies with IEEE 802.3ae(10 GbE) and ANSI T11.2(Fibre Channel) requirements
- 0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of <25 dB
- Supports devices of varying speeds, including 10 GB and 40 GB network equipment
Premium Construction for Optimal Performance
- Factory-terminated connectors reduce time and labor
- Dust caps protect unused ports
- Availability: Currently out of stock, pre-order may be available
- Condition: New
- Warranty Information Lifetime
- Product Type: Expansion Module
