Image may not exactly match the product.

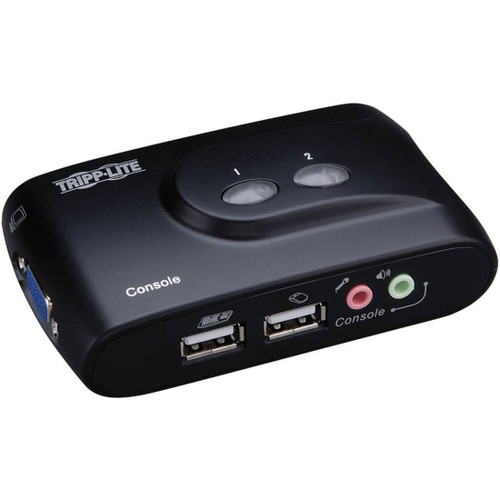

Tripp Lite B004-VUA2-K-R KVM Switch USB 2 Port With Audio and Cables
- SKU:
- B004-VUA2-K-R
- Shipping:
- Calculated at Checkout
$70.40
$62.19
(You save
$8.21
)
Image may not exactly match the product.
In-Stock
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Share:
USB KVM Switch w Audio and Cables, 2 Port
Key Features
- Fast, easy switching via keyboard hot keys, push buttons or software
- Plug-and-play setup - no software required
- Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers
- Speaker and microphone connections allow sharing of audio components between systems (standard 3.5 mm audio connections)
- Independent audio switching allows you to listen to audio from one computer while switching to the other computer
- Supports video resolutions up to 2048 x 1536 (standard 15-pin VGA connectors)
- Supports Microsoft® IntelliMouse® and the scrolling wheel on most mice]
- Compact design saves desk space
- Does not require an AC adapter
- Compatible with all major operating systems
- Includes two, 6ft Cable Kits
Typical Applications
- Use this KVM switch when accessing two USB-equipped computers with one monitor, keyboard and mouse.
System Requirements
- Console: VGA, SVGA or Multisync Monitor, USB Keyboard and USB Mouse
- Computers: VGA, SVGA or Multisync Monitor Port and USB Port
- Audio (Optional): Speakers with standard 3.5 mm Connectors and a computer with 3.5mm ports
- Compatible with all major operating systems
Package Includes
- Compact 2-port USB KVM Switch with Audio
- (2) 6ft USB KVM Cable Kits and (2) 6ft 3.5mm Audio Cable Kits
- CD-ROM with KVM Switcher Software
- Owner's Manual with Warranty Information
| OVERVIEW | |
| # Of Users | 1 |
| Console | No |
| Port Control | Push Buttons, Hotkeys, Software |
| Max CPU | 2 |
| PC/Server | PS/2 |
| Cat5 KVM Switch | No |
| IP Remote Access | No |
| PHYSICAL | |
| Color | Black |
| Style | Desktop |
| LCD Monitor (in.) | Not Applicable |
| LCD Monitor (cm) | Not Applicable |
| ENVIRONMENTAL | |
| BTUs | 17.065 |
| CONNECTIONS | |
| Ports | 2 |
| Included KVM Cable (Equipment Side) - Connector 1 | HD15 (Male) |
| Included KVM Cable (Equipment Side) - Connector 2 | USB A (Male) |
| Included KVM Cable (Equipment Side) - Connector 3 | (x2) 3.5mm (Male) |
| Local Console Ports - Port 1 | HD15 (Female) |
| Local Console Ports - Port 2 | (x2) USB A (Female) |
| Local Console Ports - Port 3 | (x2) 3.5mm (Female) |
| CERTIFICATIONS | |
| Certifications | FCC, CE, RoHS Compliant |
| WARRANTY | |
| Product Warranty Period (Worldwide) | 1-year limited warranty |
