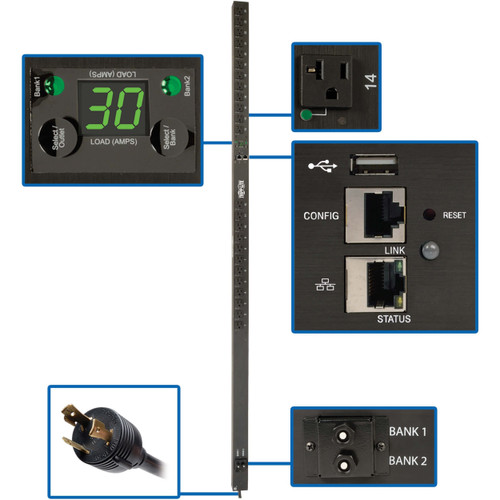

Tripp Lite PDU Monitored Per Outlet 24 5-15/20R 30A 2.9kW LX Platform 0U - Power Distribution Unit - 2.9 KW - TAA Compliant - PDUNVR30LX

Calculated at Checkout
$1,529.42 $877.16
(You save $652.26 )

Image may not exactly match the product.

Out of Stock.

Request a quote for re-stock information.

$1,529.42 $877.16
(You save $652.26 )
Currently out of stock, pre-order may be available

Warranty Information
Limited Warranty - 2 years
Product Line:
Tripp Lite
Product Type:
Power distribution unit
Installation Type:
PDU Monitored Per Outlet 24 5-15/20R 30A 2.9kW LX Platform 0U
Input Voltage:
AC 100/120/127 V
Power Provided:
2.9 kW
Remote Management Interface:
Ethernet 10/100/1000

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for your small-to-mid-sized data center, computer room or high-density network closet, the PDUNVR30LX features 24 NEMA 5-15/20R 120V outlets in two breakered load banks, which distribute AC power to rack equipment. Advanced network power monitoring provides 1% billing-grade power consumption data for devices connected to each outlet.
Not only can you remotely monitor voltage and frequency, but the PDUNVR30LX also allows metering of input current, as well as output current per bank and per outlet. Banks can be individually monitored to ensure proper load balance and prevent downtime. Monitoring each outlet allows you to study power consumption trends for each connected device. This helps you detect hardware problems and network traffic bottlenecks, as well as compare power usage among various devices.
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, Telnet or SSH. Full 10/100/1000 Mbps auto-sensing enables optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities.
The LX Platform interface allows use of Tripp Lite's IP-based Auto Probe feature, which ensures continuous network uptime by communicating with other network devices. If communication is lost, Auto Probe autonomously performs one or more user-configurable actions that help you return the network devices to an operational state, including email notifications. The innovative Auto Probe is especially ideal for ATMs, retail kiosks, digital signage, edge computing and PC gaming centers.
A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment.
The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-foot cord with a NEMA L5-30P input connects the PDU to a compatible AC power source, such as a generator or protected UPS.
The PDUNVR30LX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
