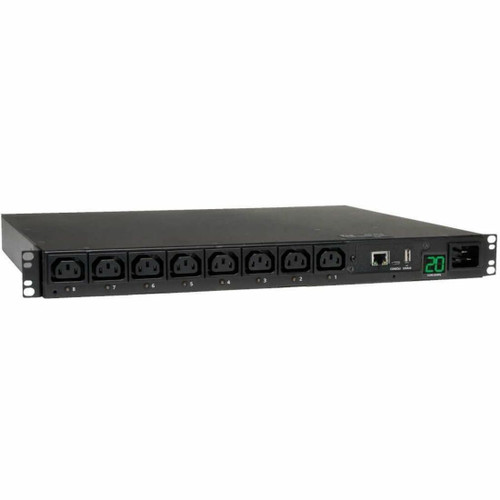

Tripp Lite PDU Switched 200V - 240V 3.2/3.8kW 20A C13 8 Outlet C20 L6-20P 1URM - Horizontal Rackmount - Power Distribution Unit - 3.8 KW - PDUMH20HVNET

• 208 / 230 / 240 V 20 A capacity switched, metered and Monitored Power Distribution Unit (PDU) with built-in web / network interface in 1U rack-mount form factor
• Includes L6-20P and C19 line cord options and 8 C13 controllable outlets
• Supports individually controllable output receptacles, current metering, network monitoring and remote control via built-in web / network monitoring and control card
• Offers the ability to turn on, turn off, recycle or lock-out power to each individual PDU receptacle on a programmable or real-time basis
• Switchable outlets enable a number of advanced networking abilities, such as remote reboot on-demand of locked IT equipment, custom power-on / power-off outlet sequencing, automatic load-shedding during power failures and disabling unused outlets to prevent the connection of unauthorized equipment loads
• Remote interface provides data regarding input power conditions, load level and individual outlet power status via secure network or web browser interface
• Supports notification and logging of all major power events and user specified alarm thresholds
• DHCP / Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
• 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
• Real-time clock support maintains the time of day and date even if the PDU is shut down and unpowered
• 2-tier level access allows an administrator and a guest to log into the web browser for monitoring and / or management of all intelligent PDUs and similarly equipped UPS systems
• Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification
• Front panel ammeter with displays whole PDU power consumption
• On initial power-up, outlets are automatically energized at 250 millisecond intervals to prevent inrush-related equipment interaction and mains circuit overloads
• Included cord retention brackets keep vital network equipment plugged in and continuously powered
• 1U rack-mount installation supported in 2 or 4 post racks
• Circuit breaker free format prevents power interruptions due to tripped breakers while still providing mains panel protection from overloads and short circuit fault conditions

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
