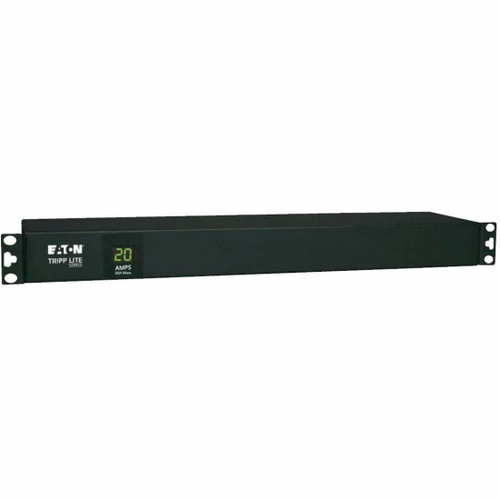

Tripp Lite PDU Metered 120V 20A 5-15/20R 12 Outlet L5-20P 1URM 6ft Cord - PDUMH20-6
- SKU:
- PDUMH20-6
- Shipping:
- Calculated at Checkout
$282.68
$162.13
(You save
$120.55
)
Image may not exactly match the product.
In-Stock
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Share:
Specifications
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMH20-6
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: Metered
Product Model: PDUMH20-6
Product Name: PDUMH20 Metered Rackmount PDU
Marketing Information: Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L5-20P
Output Receptacles: 12 x NEMA 5-15/20R
Protection Type: Overload Protection
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 2000 W
Input Current: 20 A
Physical Characteristics
Mounting Orientation: Horizontal/Vertical
Placement:
Rack Height: 0U/1U/2U
Height: 1.8"
Width: 17.5"
Depth: 3.8"
Weight (Approximate): 4.60 lb
Miscellaneous
Package Contents:
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 2 Year
Manufacturer: Tripp Lite
Manufacturer Part Number: PDUMH20-6
Manufacturer Website Address: http://www.tripplite.com
Brand Name: Tripp Lite
Product Line: Metered
Product Model: PDUMH20-6
Product Name: PDUMH20 Metered Rackmount PDU
Marketing Information: Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type: PDU
Technical Information
Input Receptacles: NEMA L5-20P
Output Receptacles: 12 x NEMA 5-15/20R
Protection Type: Overload Protection
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 2000 W
Input Current: 20 A
Physical Characteristics
Mounting Orientation: Horizontal/Vertical
Placement:
- Wall
- Under-counter
- Rack
Rack Height: 0U/1U/2U
Height: 1.8"
Width: 17.5"
Depth: 3.8"
Weight (Approximate): 4.60 lb
Miscellaneous
Package Contents:
- PDUMH20 Metered Rackmount PDU
- L5-20R to 5-20P Plug Adapter
- Mounting Accessories
- Owner's Manual with Warranty Information
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 2 Year
