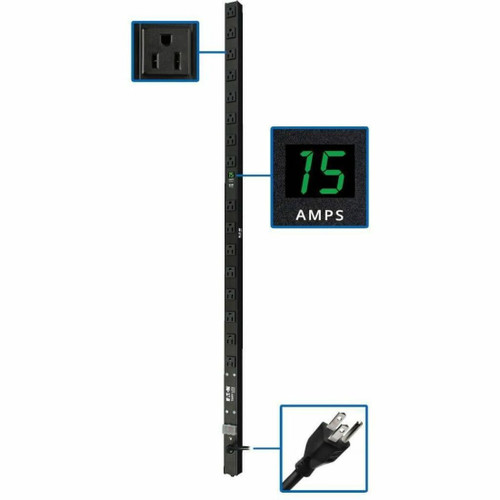

Digital Power Distribution Unit Vertical PDU 16 NEMA5-15R 15A
Key Features
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- Two-digit lighted meter reports combined total output current in amps
- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 0U 48in / 122cm vertical rackmount format installs using no rack spaces
- 16 NEMA 5-15R outlets
- Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
Typical Applications
- Ideal means of powering networking equipment in datacenters, computer rooms and network closets
Package Includes
- PDUMV15 Metered Vertical PDU
- Mounting hardware and spare mounting buttons
- Owner's manual with warranty information
OVERVIEW | |
PDU Type | Metered |
OUTPUT | |
Output Capacity Details | 1.8kW (120V input), 1.9kW (127V input), 1.5kW (100V input); 15A maximum |
Frequency compatibility | 50 / 60 Hz |
Output VA | 1800 |
Output nominal voltage | 100-127V nominal, single phase |
Overload protection | 15A |
Outlet quantity / type | 16 NEMA 5-15R |
Outlet Type | NEMA 5-15R |
INPUT | |
PDU Input Voltage | 100; 120; 127 |
Maximum Input Amps (A) | 15 |
Maximum Input Amps (A) Details | Agency de-rated to 12A continuous |
PDU Plug Type | NEMA 5-15P |
Input cord length (ft.) | 15 |
Input cord length (m) | 4.6 |
Phase | Single-Phase |
LEDS ALARMS & SWITCHES | |
Switches | Lighted on/off switch with integrated safety cover |
Front panel LEDs | Digital LED current monitor display |
PHYSICAL | |
Shipping Dimensions (HWD/in) | 51.5 x 3.5 x 2.5 |
Shipping Dimensions (HWD/cm) | 130.81 x 8.89 x 6.35 |
Shipping weight (lbs) | 4.2 |
Shipping weight (kg) | 1.91 |
Unit Dimensions (HWD/in) | 3 x 48 x 1.5 |
Unit Dimensions (HWD/cm) | 7.62 x 121.92 x 3.81 |
Unit weight (lbs) | 3.8 |
Unit weight (kg) | 1.72 |
Material of construction | Aluminum |
Style | Vertical Rackmount, Wallmount, Raceway, Workbench |
Form factors supported | Vertical (0U) mounting in rack enclosures, horziontal mount in raceways and a variety of other applications |
PDU Form Factor | Vertical (0U) |
SPECIAL FEATURES | |
Appearance | Black housing with digital current meter display |
CERTIFICATIONS | |
Certifications | Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant |
WARRANTY | |
Product Warranty Period (Worldwide) | 2-year limited warranty |
