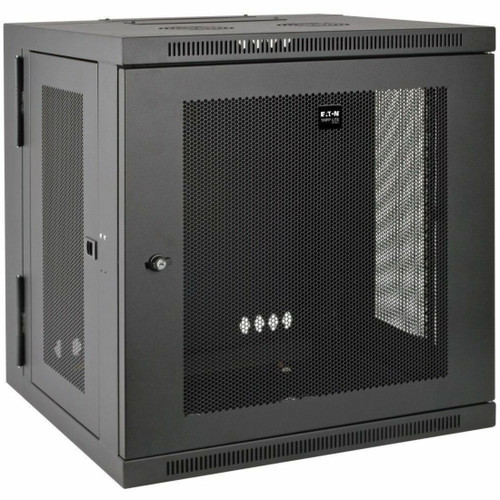

Tripp Lite SRW12US 12U Wall Mount Rack Enclosure Cabinet Hinged
- SKU:
- SRW12US
- Shipping:
- Calculated at Checkout
$684.47
$389.58
(You save
$294.89
)
Image may not exactly match the product.
In-Stock
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Share:
12U Wall Mount Rack Enclosure Cabinet Hinged Wallmount
Key Features
- 12U wall-mounted enclosure
- Adjustable mounting depths from 3" to 20.5" inches
- Ventilated front door and side panels for increased airflow
- Hinged cabinet swings away from wall bracket for easy equipment and cable access
- Locking, reversible front door
- Locking, removable side panels
- Top and bottom panel cable access openings
- Fully assembled for quick installation
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Package Includes
- SRW12US Wallmount Rack Enclosure
- (20) M6 screws
- (20) M6 cage nuts
- (20) M6 washers
- (2) Keys
- Owner's Manual
| PHYSICAL | |
| Installed whole system maximum rack depth (inches) | 20.5 |
| Installed whole system maximum rack depth (cm) | 52.07 |
| Installed whole system minimum rack depth (inches) | 3 |
| Installed whole system minimum rack depth (cm) | 7.62 |
| Rack Height | 12U |
| Shipping Dimensions (HWD/in) | 27.95 x 26.38 x 24.41 |
| Shipping Dimensions (HWD/cm) | 70.93 x 67 x 62 |
| Shipping weight (lbs) | 64 |
| Shipping weight (kg) | 28.8 |
| Unit Dimensions (in.) | EXTERNAL DIMENSIONS: 25 x 23.63 x 21.6 (HWD) |
| Unit weight (lbs) | 60 |
| Unit weight (kg) | 27.21 |
| Unit Dimensions (cm) | EXTERNAL DIMENSIONS: 63.5 x 60 x 54.9 (HWD) |
| Color | Black |
| Style | Wall Mounted |
| Weight Capacity - Stationary (lbs) | 200 |
| Weight Capacity - Stationary (kg) | 90.7 |
| Cable Access Hole Measurement (inches) | 9.812 x 2.35 (l x w) |
| SPECIAL FEATURES | |
| Grounding lug | Front and Back door frames |
| CERTIFICATIONS | |
| NOM (Mexico) | Tested to NOM (Mexico) |
| Approvals | EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS |
| WARRANTY | |
| Product Warranty Period (Worldwide) | 5-year limited warranty |
