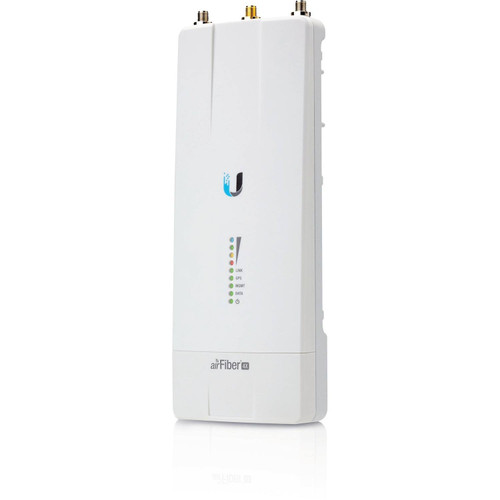

Ubiquiti airFiber X AF-4X 200+ km 4 GHz 500 Mbit/s Wireless Bridge - AF-4X-US

SKU:
AF-4X-US
Shipping:
Calculated at Checkout
$399.00 $391.87
(You save $7.13 )

Image may not exactly match the product.

Out of Stock.

Request a quote for re-stock information.

$399.00 $391.87
(You save $7.13 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
1 Year

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Share:
Specifications
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: AF-4X-US
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: airFiber X
Product Model: AF-4X
Product Name: airFiber X AF-4X Wireless Bridge
Marketing Information: Ubiquiti Networks introduces the airFiber® AF-4X, Ubiquiti's first licensed spectrum radio designed for the public safety sector. It meets the growing need of broadband capacity and optimizes use of the 4.9 GHz radio band with its industry-leading spectral efficiency and TDD throughput. The AF-4X allows you to customize airFiber backhaul links or upgrade existing Rocket® Point-to-Point (PtP) links.

Designed for the Public Safety Market

Deploy the high-performance and reliable AF-4X for municipal applications, including police, fire, and emergency medical services.

Engineered for Performance

Ubiquiti's INVICTUS™ custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

Our INVICTUS core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, and higher delivered throughput.

The airFiber X features industry-leading spectral efficiency of up to 17.1 Mbps/MHz, line-rate data packet processing of up to 525 Mbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 200+ km in range.

4 GHz Backhaul

Mission-Critical Communications

The AF-4X covers the 4.9 GHz spectrum for public safety. Additional frequencies, from 4.7 GHz to 4.9 GHz, are supported in Europe and other regions (subject to local country regulations).

The AF-4X uses a proprietary radio communications protocol with AES-128 encryption to help ensure communication channels are secure.

Ultra-Low Latency with HDD Technology

The AF-4X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.

Optimal Operation and Channel Configuration

The AF-4X supports up to 11 different channel width sizes to suit your deployment needs. You can configure independent TX and RX channel frequencies and place them anywhere within the radio band, and the channel centers are selectable in 1 MHz increments.

You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

Co-Location

With space at a premium, the importance of being able to co-locate equipment is becoming an essential attribute for modern wireless networks. The AF-4X is engineered to permit multiple radios to operate side by side, allowing maximum spectral efficiency.

GPS Synchronization

Precise GPS frame synchronization enables co-located AF-4X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.

Clean Power Output

Using advanced digital signal processing, the innovative AF-4X radio design has an ultra-clean transmitter output, reducing broadband noise, facilitating co-location, and enabling higher-order modulations like 1024QAM for greater throughput.

Deployment Flexibility

The AF-4X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The compact form factor of the airFiber X allows it to fit into the radio mount of Ubiquiti antennas, so installation requires no special tools. The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber AF-4X.


Product Type: Wireless Bridge
Technical Information
Frequency Band: 4.90 GHz
Outdoor Antenna Range: 124.3 Mile
Wireless Transmission Speed: 500 Mbit/s
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes
Physical Characteristics
Form Factor: Pole-mountable
Height: 1.9"
Width: 3.2"
Depth: 8.8"
Weight (Approximate): 12.35 oz
Miscellaneous
Package Contents:
  • airFiber X AF-4X Wireless Bridge
  • PoE Gigabit Adapter
  • GPS Pole Mount

Warranty
Limited Warranty: 1 Year
