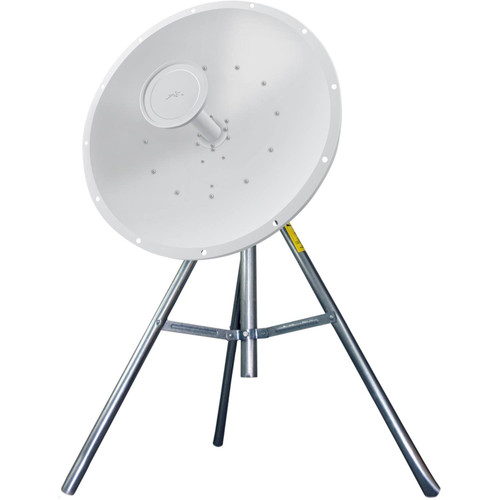

Ubiquiti airMAX Carrier Class 2x2 PtP Bridge Dish Antenna - RD-5G31-AC

Specifications
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: RD-5G31-AC
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: RocketDish
Product Model: RD-5G31-AC
Product Name: airMAX Carrier Class 2x2 PtP Bridge Dish Antenna
Marketing Information:

Pair the RocketM's radio with the RocketDish antenna's reach to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul. On the right is one example of how the RocketDish can be deployed.

Superior Performance

The Ubiquiti Research and Development team engineered the RocketDish RD-5G31-AC with high isolation and Front-to-Back (F/B) ratio.

The main benefit is improved Signal-to-Noise Ratio (S/N or SNR). The improved F/B ratio and lower sidelobes reduce the interference from other transmitters in the area - potentially on the same tower. The improved S/N ratio allows a higher-order modulation to be used, for example, 128QAM rather than 16QAM. This in turn increases the number of bits per second for a fixed bandwidth, which is also known as the data rate.

Product Type: Antenna
Technical Information
Frequency Band Type: SHF
Frequency: 5.10 GHz to 5.80 GHz
Antenna Gain: 31 dBi
Physical Characteristics
Height: 13.7"
Width: 29.4"
Depth: 29.4"
Form Factor: Pole
Weight (Approximate): 16.76 lb
Miscellaneous
Application/Usage: Base Station
Package Contents:

• airMAX Carrier Class 2x2 PtP Bridge Dish Antenna
• Universal Pole Mount
• RocketM Bracket
• Weatherproof RF Jumpers
• Protective Radome

Compatibility: Ubiquiti RocketM Base Station
