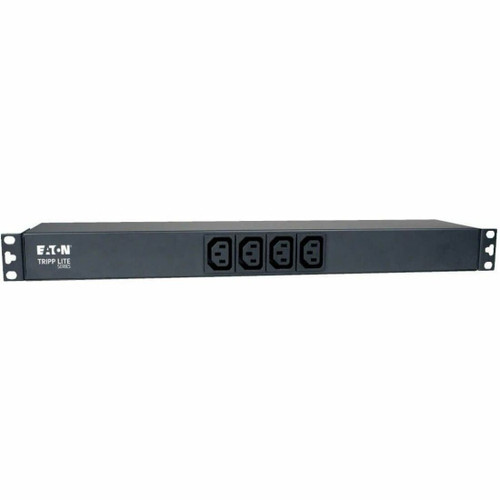

Power Distribution Unit 19" 1U 12x C13, 2x C19, 100-240V 16A
Key Features
- 16A single phase 100-240V Basic Power Distribution Unit / PDU
- C20 inlet accepts a wide variety of customer provided input cable options
- 1U horizontal rackmount format installs in one rack space
- 14 outlets (4 C13 front, 8 C13 / 2 C19 rear)
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug
Typical Applications
- Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications: internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.
Package Includes
- PDU12IEC Rackmount Power Strip
- Warranty information
- Instruction manual
OVERVIEW | |
PDU Type | Basic |
OUTPUT | |
Output Capacity Details | 1.9kW (120V input), 2.0kW (127V input), 1.6kW (100V input), 3.3kW (208V input), 3.5kW (220V input), 3.7kW (230V input), 3.8kW (240V input), 3.2kW (200V input); 16A maximum |
Frequency compatibility | 50 / 60 Hz |
Output nominal voltage | 100-240V nominal, single phase |
Overload protection | 16A |
Outlet quantity / type | 12 IEC-C13 & 2 IEC-C19 |
Outlet Type | IEC-C13, IEC-C19 |
INPUT | |
PDU Input Voltage | 100; 120; 127; 200; 208; 220; 230; 240 |
Maximum Input Amps (A) | 16 |
PDU Plug Type | IEC-320 C20 |
Input cord length details | User supplies cord |
Phase | Single-Phase |
LEDS ALARMS & SWITCHES | |
Switches | No power switch |
PHYSICAL | |
Shipping Dimensions (HWD/in) | 2.5 x 20.25 x 10 |
Shipping Dimensions (HWD/cm) | 6.35 x 51.4 x 25.4 |
Shipping weight (lbs) | 3.8 |
Shipping weight (kg) | 1.73 |
Unit Dimensions (HWD/in) | 1.75 (1U) x 17.5 x 4.5 |
Unit Dimensions (HWD/cm) | 4.4 x 44.5 x 10.8 |
Unit weight (lbs) | 3.2 |
Unit weight (kg) | 1.45 |
Material of construction | Sheet metal |
Style | Rackmount, Vertical Rackmount, Wallmount/Under-Counter |
Form factors supported | 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported |
PDU Form Factor | Horizontal (1U, 2U, etc) |
Outlets center to center measurement | Distance between Front (C13) outlets = 28.75mm; Distance between Rear (C19) outlets = 55mm; Distance between Rear (C13) outelts = 28.75mm |
ENVIRONMENTAL | |
Operating Temperature Range | 0 to 40 degrees C (32 to 104 degrees F) |
Storage Temperature Range | -20 to 60 degrees C (-4 to 140 degrees F) |
Relative Humidity | 0-90% non condensing |
SPECIAL FEATURES | |
TVSS grounding | Back panel nut and bolt grounding lug |
CERTIFICATIONS | |
Certifications | Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), CE (Europe) |
WARRANTY | |
Product Warranty Period (Worldwide) | 5-year limited warranty |
