Image may not exactly match the product.

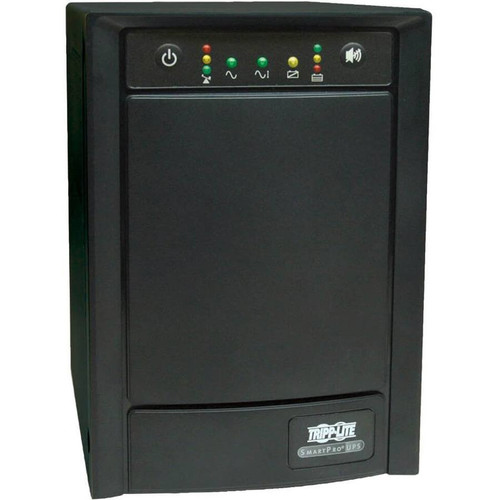

Tripp Lite SMART1050SLT Smart Pro 1050VA UPS Backup Tower AVR 6 Outlet
- SKU:
- SMART1050SLT
- Shipping:
- Calculated at Checkout
$835.66
$479.27
(You save
$356.39
)
Image may not exactly match the product.
Out of Stock.
Request a quote for re-stock information.
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Share:
1050VA UPS Smart Pro Tower Line-Interactive 6 outlet w/ SNMP Slot
Key Features
- SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications
- Line-interactive automatic voltage regulation (AVR) maintains selectable 100V, 110V or 120V nominal output during brownouts as low as 83V and overvoltages to 145V
- Enables continuous operation through blackouts, voltage fluctuations and surges
- Line-interactive AVR provides a 14% boost during brownouts and a 12% voltage cut during overvoltages
- Standard internal battery set offers 19 min. runtime at half load (325W) and 7 min. at full load (650W)
- Space-saving upright tower format
- Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and SNMPWEBCARD slot
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.
- Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, timed inverter shutoff, activate self-test and output power control
- NEMA 5-15P input plug; 8 x battery-supported NEMA 5-15R output receptacles
- Front panel LEDs offer current monitoring, voltage regulation and battery charge level information
- UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required
- Single-line tel/DSL or network Ethernet line surge suppression
Package Includes
- SMART1050SLT UPS System
- PowerAlert Software CD
- USB and serial cabling
| OUTPUT | |
| Output Volt Amp Capacity (VA) | 1050 |
| Output kVA capacity (kVA) | 1 |
| Output Watt Capacity (watts) | 650 |
| Output power factor | 14:24 |
| Nominal Output Voltage(s) Supported | 100V; 110V; 120V |
| Nominal Voltage details | 120V default (voltage selection via back panel switches) |
| Frequency compatibility | 50 / 60 Hz |
| Output voltage regulation (line mode) | -13%, + 15% |
| Output voltage regulation (Battery mode) | +/- 5% |
| Built-in UPS output receptacles | 8 5-15R outlet(s) |
| Output AC waveform (AC mode) | Sine wave |
| Output AC waveform (battery mode) | Pure Sine wave |
| INPUT | |
| Rated input current (at maximum load) | 6.1A (120V), 6.6A (110V), 7.2A (100V) |
| Nominal Input Voltage(s) Supported | 100V AC; 110V AC; 120V AC |
| UPS input connection type | 5-15P |
| UPS Input cord length (ft.) | 6 |
| UPS Input cord length (m) | 1.8 |
| Recommended Electrical Service | 15A 120V |
| Phase | Single-Phase |
| BATTERY | |
| Full load runtime (minutes) | 7 min. (650w) |
| Half load runtime (minutes) | 19 min. (325w) |
| DC system voltage (VDC) | 24 |
| Battery recharge rate (included batteries) | Less than 6 hours from 10% to 90% |
| Replacement battery cartridge (internal UPS battery replacement) | RBC24-SLT |
| Battery Access | Battery access door |
| Battery replacement description | Hot-swappable, user replaceable batteries |
| VOLTAGE REGULATION | |
| Voltage regulation description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 95 to 145 (120v), 87 to 133 (110v), 83 to 121 (100v) |
| Overvoltage correction | Voltage reduction of 12% applies when input is 127 to 145 (120v), 116 to 133 (110v), 111 to 121 (100v) |
| Undervoltage correction | Voltage boost of 14% applies when input is 95 to 108 (120v), 87 to 99 (110v), 83 to 90 (100v) |
| LEDS ALARMS & SWITCHES | |
| LED Indicators | Status LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for load and battery charge level |
| Site wiring fault indication | Rear panel site wiring fault LED |
| Alarms | Audible alarm indicates power failure and overload conditions |
| Alarm cancel operation | Power-fail alarm can be silenced using alarm-cancel switch |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection |
| SURGE / NOISE SUPPRESSION | |
| UPS AC suppression joule rating | 690 |
| UPS AC suppression response time | Instantaneous |
| UPS Dataline suppression | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| EMI / RFI AC noise suppression | Yes |
| PHYSICAL | |
| Installation form factors supported with included accessories | Tower |
| Primary form factor | Tower |
| UPS / Power Module dimensions in primary form factor (height x width x depth / inches) | 10.2 x 6.8 x 13.2 |
| UPS / Power Module dimensions in primary form factor (height x width x depth / cm) | 26 x 17.1 x 33.7 |
| UPS / Power Module weight (lbs) | 36 |
| UPS / Power Module weight (kg) | 16.3 |
| UPS Shipping dimensions (height x width x depth / inches) | 14 x 9.8 x 18.5 |
| UPS Shipping dimensions (height x width x depth / cm) | 35.6 x 24.8 x 47 |
| Shipping weight (lbs) | 39.6 |
| Shipping weight (kg) | 18 |
| Cooling method | Fan |
| UPS housing material | Steel |
| ENVIRONMENTAL | |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius. |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius. |
| Relative Humidity | 0 to 95%, non-condensing |
| AC mode BTU / hr. (full load) | 141.1 |
| Battery mode BTU / hr. (full load) | 452.7 |
| AC mode efficiency rating (100% load) | 94% |
| Audible Noise | Audible Noise < 50 dBA at Front Side 1 Meter |
| COMMUNICATIONS | |
| Communications interface | USB; DB9 Serial; Slot for SNMP/Web interface |
| Network monitoring port description | Supports detailed monitoring of UPS and site power conditions |
| PowerAlert software | Included |
| Communications cable | USB and DB9 cabling included |
| WatchDog compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications. |
| LINE / BATTERY TRANSFER | |
| Transfer time | 4-6 milliseconds |
| Low voltage transfer to battery power (setpoint) | 95V (120V), 87V (110V), 83V (100V) |
| High voltage transfer to battery power (setpoint) | 145V (120V), 133V (110V), 121V (100V) |
| SPECIAL FEATURES | |
| Cold Start (startup in battery mode during a power failure) | Cold-start operation supported |
| High availability UPS features | Hot swappable batteries |
| CERTIFICATIONS | |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI) |
| WARRANTY | |
| Product Warranty Period (Worldwide) | 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. |
| Connected Equipment Insurance (U.S., Canada & Puerto Rico) | $250,000 Ultimate Lifetime Insurance |
