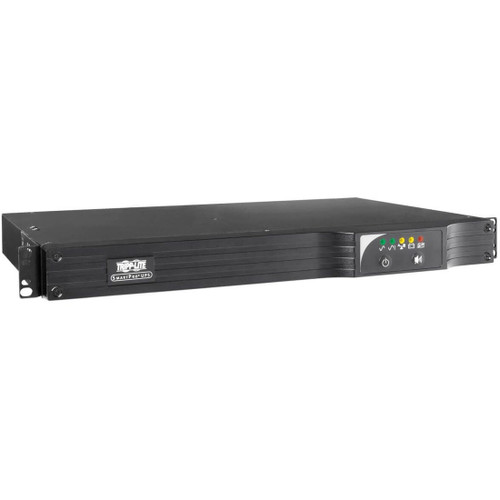

500VA UPS Smart Pro Rack/Tower Line-Interactive 7 outlets
Key Features
- Tripp Lite SMART500RT1U .5 kVA / 500VA / 300 watt line interactive UPS
- 1U rack / tower compatible form factor
- NEMA 5-15P input connection; 7 NEMA 5-15R output receptacles
- Installed depth of only 11.8 in / 29.8 cm
- Large internal batteries offer runtimes of 14.6 minutes at half load (250VA/150 watts) and 3.2 minutes at full load (500VA/300 watts)
- Maintains regulated 120V nominal output during brownouts as low as 90V
- Includes 6 UPS-supported outlets and 1 surge-only outlet
- One of the UPS supported outlets is switched for remote load shedding or rebooting of an individual device
- PowerAlert UPS monitoring software enables detailed site power and UPS status updates with support for unattended shutdown of connected systems as UPS batteries become depleted
- Supports detailed monitoring of equipment load levels,self-test data, and utility power condition via built-in RS-232 and USB interfaces
- HID-compliant USB interface enables integration with built-in power management and auto-shutdown of windows and Mac OS X
- Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces
- Supports Tripp Lite's WatchDog software application to restore operation to locked equipment through soft reboot of application, OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications (requires optional WATCHDOGSW)
- Emergency Power Off (EPO) interface with cable
- Multi-function audible alarms and set of 5 front panel LEDs
- Network-grade AC surge suppression
- Field-replaceable, hot-swappable internal UPS batteries
Package Includes
- SMART500RT1U UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Instruction manual
OUTPUT | |
Output Volt Amp Capacity (VA) | 500 |
Output Watt Capacity (watts) | 300 |
Output power factor | 0.6 |
Nominal Output Voltage(s) Supported | 120V |
Frequency compatibility | 60 Hz |
Output voltage regulation (line mode) | -15%, +13% |
Output voltage regulation (Battery mode) | +/- 5% |
Built-in UPS output receptacles | 6 5-15R outlet(s) |
Surge suppression only outlets | 6 UPS outlets, 1 surge-only outlets |
Built-in controllable switched load banks | One switchable single-outlet 5-15R load bank |
Output AC waveform (AC mode) | Sine wave |
Output AC waveform (battery mode) | PWM sine wave |
INPUT | |
Rated input current (at maximum load) | 5.6A |
Nominal Input Voltage(s) Supported | 120V AC |
UPS input connection type | 5-15P |
Input circuit breaker | 15A |
UPS Input cord length (ft.) | 10 |
UPS Input cord length (m) | 4.5 |
Recommended Electrical Service | 15A 120V |
Phase | Single-Phase |
BATTERY | |
Full load runtime (minutes) | 3.2 min. (300w) |
Half load runtime (minutes) | 14.6 min. (150w) |
DC system voltage (VDC) | 12 |
Battery recharge rate (included batteries) | Less than 4 hours from 10% to 90% |
Replacement battery cartridge (internal UPS battery replacement) | RBC62-1U |
Battery Access | Battery access door |
Battery replacement description | Hot-swappable, user replaceable batteries |
VOLTAGE REGULATION | |
Voltage regulation description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 90 |
Undervoltage correction | Input voltages between 90 and 108 are boosted by 14% |
LEDS ALARMS & SWITCHES | |
LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
Alarms | Audible alarm indicates power-failure, overload and low-battery conditions |
Alarm cancel operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
SURGE / NOISE SUPPRESSION | |
UPS AC suppression joule rating | 567 joules |
EMI / RFI AC noise suppression | Yes |
AC suppression joule rating | 567 |
AC suppression response time | Instantaneous |
PHYSICAL | |
Installation form factors supported with included accessories | 4 post 19 inch rackmount; 2 post 19 inch rackmount |
Primary form factor | Rackmount |
UPS / Power Module dimensions in primary form factor (height x width x depth / inches) | 1.7 x 17.5 x 11.8 |
UPS / Power Module dimensions in primary form factor (height x width x depth / cm) | 4.4 x 44.4 x 29.8 |
Rack Height | 1U |
UPS / Power Module weight (lbs) | 17.6 |
UPS / Power Module weight (kg) | 8 |
UPS Shipping dimensions (height x width x depth / inches) | 5 x 22.5 x 16 |
UPS Shipping dimensions (height x width x depth / cm) | 12.7 x 57.2 x 40.6 |
Shipping weight (lbs) | 19.9 |
Shipping weight (kg) | 9 |
UPS housing material | Steel |
ENVIRONMENTAL | |
Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
Relative Humidity | 0 to 95%, non-condensing |
AC mode BTU / hr. (full load) | 65.1 |
Battery mode BTU / hr. (full load) | 287.7 |
AC mode efficiency rating (100% load) | 94% |
COMMUNICATIONS | |
Communications interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
Network monitoring port description | Supports detailed monitoring of UPS and site power conditions |
PowerAlert software | Included |
Communications cable | USB and DB9 cabling included |
WatchDog compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
LINE / BATTERY TRANSFER | |
Transfer time | 2-4 milliseconds |
Low voltage transfer to battery power (setpoint) | 90 |
High voltage transfer to battery power (setpoint) | 136 |
SPECIAL FEATURES | |
Grounding lug | Back panel grounding lug |
Cold Start (startup in battery mode during a power failure) | Cold-start operation supported |
High availability UPS features | Hot swappable batteries |
Green & high efficiency features | Individually controllable load banks |
CERTIFICATIONS | |
UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI) |
WARRANTY | |
Product Warranty Period (Worldwide) | 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. |
Connected Equipment Insurance (U.S., Canada & Puerto Rico) | $250,000 Ultimate Lifetime Insurance |
