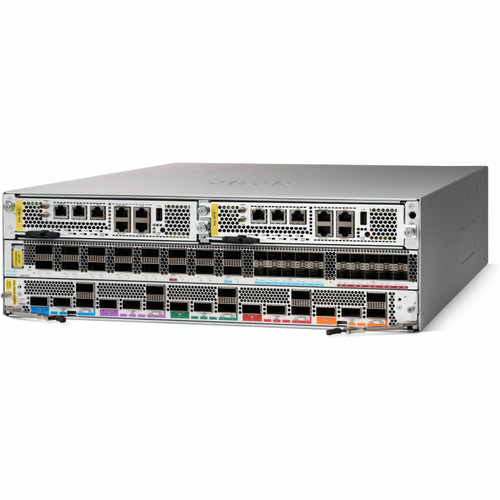

Cisco ASR 9903 Router Chassis - Management Port - 36 QSFP28 Slots, SFP+ Slots - 32 GB - 100 Gigabit Ethernet - IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3ba - 3U - ASR-9903-FC

Part of the Cisco® ASR 9000 Series, the Cisco ASR 9903 Router is a compact, high-performance router that delivers up to 3.6 Tbps of nonblocking, full-duplex capacity in a Three-Rack-Unit (3RU) form factor. Based on the same Cisco IOS® XR software image as the other routers in the Cisco ASR 9000 Series, the Cisco ASR 9903 Router delivers the features and services found on the ASR 9000 Series platforms, allowing customers to standardize on the same Cisco IOS XR operating system. Multiple port rates are supported by ASR 9903: 400 Gigabit Ethernet, 200 Gigabit Ethernet, 100 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet and 10 Gigabit Ethernet, so it gives customers the flexibility to mix and match interface types on the same chassis and offers operators the readiness for mass-scale networking.

As a fully redundant, high-performance multi-purpose platform, the ASR 9903 router can be used in a wide range of customer's scenarios and use-cases: business PE, metro aggregation, cloud edge, Internet peering, Data Center Interconnect (DCI), and others. The compact size (depth is 600 mm), front-to-back airflow, support of PTP Telecom profiles, and different port rates make this platform very efficient and flexible for using at the mobile edge in 4G/5G networks. Enterprise customers can deploy the ASR 9903 as a border router at the edge of the enterprise network and as a peering router for communication with Internet service providers.

Features and benefits

The ASR 9903 router offers power-optimized architecture with high density of multi-rate ports and super service scales. This allows customers to reduce Capital Expense (CapEx) and Operating Expense (OpEx) while providing highly predictable, flexibly managed service infrastructure.

The Cisco ASR 9903 Router is a compact router that supports two redundant Route Processors (RP), two integrated switch fabrics, 4 AC or DC power supply modules, and 4 fans in redundant configuration. The router consists of the fixed board, with 16 integrated QSFP28-based 100GE ports plus 20 integrated SFP+-based ports and an optional Port Expansion Card (PEC), which can be inserted into the dedicated slot on demand.

The ASR 9903 fixed board supports maximum 1.6T data bandwidth. The integrated physical ports on its faceplate can operate in three combinations: 16x100GE, 15x100GE + 10x10GE or 14x100GE + 20x10GE.

The Cisco ASR 9903 Route Processor (Figure 2) is available in a service edge-optimized version to meet customer requirements for large-scale, comprehensive service deployment and also features a powerful 64-bit Intel CPU and 32GB memory. A set of external interfaces on the front panel includes: console and auxiliary serial ports, two management Ethernet interfaces, a Class A USB port, GPS interface (10Mhz, 1PPS, ToD ports), and two BITS interfaces.
