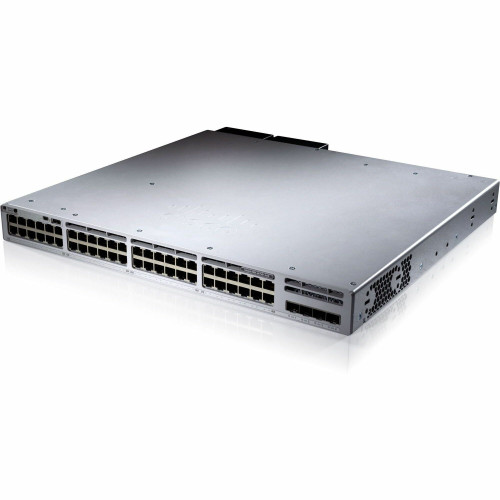

The Cisco Catalyst Meraki C9300 48-port (12 mGig, 36 2.5Gbps) - C9300-48UXM-M is a cutting-edge multigigabit switch designed to meet the demands of high-performance enterprise networks. Offering an array of advanced features and robust specifications, this switch ensures seamless connectivity and optimized network performance. Let's delve into the technical specifications and key features of the C9300-48UXM-M:
Interfaces Specifications:
- Port Configuration: 36 x 100M/1G/2.5G + 12 x 100M/1G/2.5G/5G/10G
- Uplink: 10/40GbE (SFP+, QSFP+)
- Modular Ports: 120G Hardware Stack Port
- Dedicated Management Interface: 1
- PoE/UPoE Capabilities: UPoE
Physical Specifications:
- Dimensions: 1.73 x 17.5 x 22.2 inches (4.4 x 44.5 x 56.4 cm)
- Weight: 20.50 lb (9.34 kg)
- Mount Type: 1U Rack Mount
- Hot Swap Fans: Yes, 3x
- Operating Temperature: -5°C to 45°C
- Humidity: 5 to 90%
Performance:
- Switching Capacity: 580 Gbps
- Stacking Bandwidth: 480 Gbps
- Forwarding Rate: 431.54 Mpps
Power Supply and Specifications:
- Default Power Supply: PWR-C1-1100WAC-P-M
- Hot Swap Power Supply: Yes, Dual
- Available PoE W/ Primary PS: 490W
- Available PoE W/ Secondary PS: 1590W
- Power Load (idle/max): 218.5 / 785.5 W
Regulations and Compliance:
- Electromagnetic Compatibility: FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317
- Safety: CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
- Environmental: Reduction of Hazardous Substances (RoHS)
Warranty and Reliability:
- Warranty: Full lifetime hardware warranty with next-day advanced replacement included
- MTBF Rating: 202,160 hours
Package Contents:
- 1 x default power supply unit for the switch model
- Rack mount brackets and screw kit
- 3 x Pre-installed fans
With its exceptional performance, versatile interfaces, and robust build, the Cisco Catalyst Meraki C9300 48-port UPoE switch is the ideal choice for modern enterprise networks. It provides reliable connectivity, high-speed data transfer, and seamless integration, ensuring optimal network performance and efficiency.
