Cisco NCS 1004 OTN Xponder Line Card - For Data Networking, Optical NetworkOptical Fiber100 Gigabit Ethernet, 400 Gigabit Ethernet - 100GBase-X, 400GBase-X - 12 x Expansion Slots - NCS1K4-OTN-XP=

SKU:
NCS1K4-OTN-XP=
Shipping:
Calculated at Checkout
$330,344.31
Financing Available: Learn More!
NCS1K4-OTN-XP=

Image may not exactly match the product.

$330,344.31
Financing Available: Learn More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Book A Specialist
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
5 Year
Ethernet Technology:
100 Gigabit Ethernet,400 Gigabit Ethernet
Network Technology:
100GBase-X,400GBase-X
Product Type:
XPonder Card
View More

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

What Sets Us Apart

Real Humans. Real Help.

Forget chasing down reps or emailing into the abyss. Get your own IT Concierge — a real human who stays with you from start to finish. One point of contact. Zero runaround.

👉 Meet Your IT Concierge

Rapid-Fire Quotes, No Fluff

Under the gun? We turn around Cisco & Meraki quotes in record time — even complex builds. No waiting days for basic pricing.

👉 Get My Fast Quote

Free Solution Design with White Glove Engineers

Need to validate your BoM or double-check your plan? Our Cisco-certified engineers review it with you, optimize where needed, and catch gotchas before they cost you…all free.

👉 Book a time with a Specialist

We Don’t Just Sell Boxes. We Build Solutions.

Pre-config, licensing help, and install guidance — we make sure what you buy solves your problem, the first time.

👉 Explore Services & Solutions

Trade-In Credits Without the Headaches

Turn your old gear into instant quote credits. We can coordinate the recycling or destruction in an environmentally friendly and safe manner. Enjoy a smoother path to your upgrade with built-in savings.

👉 Discuss Trade-In Options

Unlock Pricing Other Buyers Don't See

Get access to exclusive Cisco/Meraki incentives, special pricing tiers, and project-based discounts you won’t find anywhere else.

👉 Unlock Exclusive Pricing
Cisco

Want to skip the back and forth? Talk directly to a specialist and get expert guidance in under 30 minutes.

Talk To A Strategist
For Data Networking, Optical NetworkOptical Fiber100 Gigabit Ethernet, 400 Gigabit Ethernet - 100GBase-X, 400GBase-X - 12 x Expansion Slots - QSFP56-DD, QSFP28, CFP2

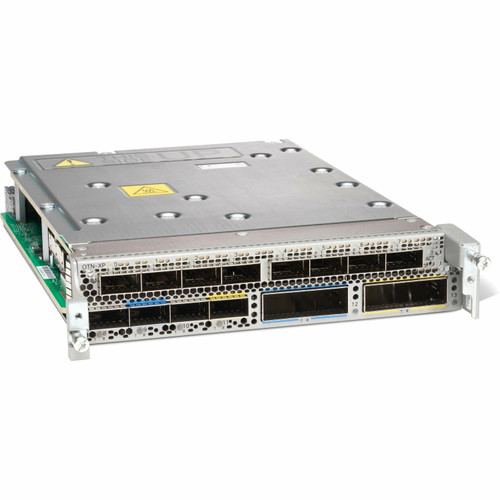

The Cisco NCS 1004 OTN-XPonder Line Card embeds a flexible core FPGA (Field Programmable Gate Array), which allows for support of multiple applications like Muxponder, Transponder, and OTN-Switch, pending future roadmap releases.

The line card features a large variety of different pluggable interfaces:

  • 4x DD-QSFP56/QSFP28/QSFP+ ports (two of which can be used as a QSFP-DD trunk as an alternative to CFP2 DCO WDM) for 400GE, 100GE/OTU4, 32G/16G FC, or 10GE/OTU2/OTU2e clients
  • 8x QSFP-28/QSFP+ ports for 100G, 32G/16G FC, or 10GE/OTU2/OTU2e clients
  • 2x CFP2 DCO WDM for high-performance (with optional encryption) trunks (to be used instead of the DD-QSFP trunk)


Different FPGA images will support different card configuration, pending SW roadmap availability.

Because of this, the line card is ready to support the following configuration:

"Grey Muxponder," available in Cisco IOS®XR Release 7.2.1 and later.

10x10G signals multiplexed onto an OTU4 Grey QSFP28. Up to two slices of the 10x10G Muxponder can be configured on the OTN Xponder line card.

Two major use cases are addressed by such an application:

  • Provide 10G fan out option to 1.2T Muxponder line card. In one NCS1004 chassis can be placed a 1x1.2T Muxponder configured (for example) with a 600G trunk multiplexing a 6xOTU4 coming from a 3xOTN-Xponder line card supporting 20x10G each. This configuration is providing 60x10G over a single 600G lambda in 2RU.
  • Provide 10G to OTU4 demarcation for a customer who requires an OTN "grey" signal hands off to a third-party network. Up to a 4xOTN-Xponder can be placed in a single NCS 1004 chassis to support 80x10G over 8xOTU4 hands off.


In Cisco IOS® XR Release 7.3.1 OTN-XP will be able to support 400G wavelengths with new CFP2 DCO at 400G on the following configurations:

  • 2x400GE TXPs over 2x400G 16-QAM WDM lambdas. Supported 400G client type will be 400GE.
  • 2x4x100G MXPs over 2x400G 16-QAM WDM lambdas. Supported 100G client types will be 100GE and OTU4.
  • 1x400G TXPs + 1x4x100GE/OTU4 MXP over 2x400G WDM lambdas.


In future roadmap releases, OTN-XP will be able to support wavelengths at 200G or 300G as well as additional client rates:

  • 40x10G over 1x400G WDM lambda. Supported 10G client type will be 10GE, OTU2 and OTU2e
  • 2x2x100G MXPs over 2x 200G QPSK WDM lambdas. Supported 100G client type will be 100GE and OTU4
  • 2x3x100GE/OTU4 over 2x1x 300G 8-QAM WDM lambdas
  • Hybrid configuration with 10x10GE/OTU2/OTU2e + 3x100GE/OTU4 over a single 400G 16-QAM WDM lambda
  • Inverse Multiplexing of 400GE over 2x200G QPSK lambdas
  • Availability: Currently out of stock, pre-order may be available
  • Condition: New
  • Warranty Information 5 Year
  • Ethernet Technology: 100 Gigabit Ethernet,400 Gigabit Ethernet
  • Network Technology: 100GBase-X,400GBase-X
  • Product Type: XPonder Card
