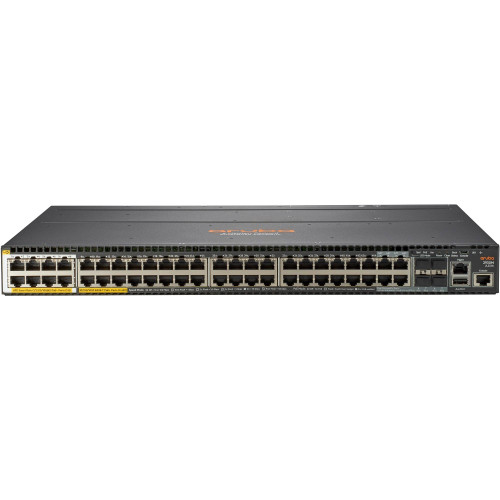

Aruba HPE 2930M 40G 8 HPE Smart Rate PoE+ 1-Slot Switch - JL323A

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: JL323A
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Series: 2930M
Product Name: 2930M 40G 8 HPE Smart Rate PoE+ 1-Slot Switch
Marketing Information:



The Aruba 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and value with support of the latest SDN apps with future proof programmability for tomorrow's applications. High performance modular stacking for up to 10 switches provides pay as you grow scalability and simplicity. The 2930M supports 10GbE and 40GbE uplinks, Dual Modular Power Supplies, up to 1440 Watts of PoE+, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, robust QoS, RIP, Access OSPF routing, Tunnel Node, PIM, VRRP and IPv6 with no software licensing required.

The Aruba 2930M Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Deployment. The switches include a Limited Lifetime Warranty.

FEATURES AND BENEFITS

Software-defined networking

• OpenFlow supports OpenFlow 1.3 specifications to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths

Unified Wired and Wireless ?

• ClearPass Policy Manager supports unified wired and wireless policies using Aruba ClearPass Policy Manager
• Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected
• User role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switchbased local user role or download from ClearPass
• Tunnel Node provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
• HTTP redirect function supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution

Quality of Service (QoS)

• Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels mapped to eight queues
• Layer 4 prioritization enables prioritization based on TCP/UDP port numbers
• Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
• Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums ?
• Large buffers Provide graceful congestion management

Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 40 x Gigabit Ethernet Network
• 8 x 10 Gigabit Ethernet Network
• 4 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 10GBase-T
• 1000Base-X

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.4"
Depth: 12.8"
Weight (Approximate): 9.81 lb
Warranty
Limited Warranty: Lifetime
