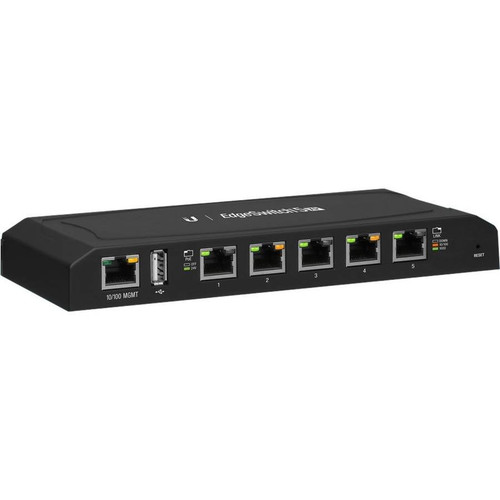

Ubiquiti EdgeSwitch XP 5 Gigabit 24V PoE Ethernet Switch - ES-5XP
- SKU:
- ES-5XP
- Shipping:
- Calculated at Checkout
$105.00
$98.94
(You save
$6.06
)
Image may not exactly match the product.
In-Stock
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Share:
Specifications
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: ES-5XP
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: EdgeSwitch
Product Model: ES-5XP
Product Name: EdgeSwitch ES-5XP Ethernet Switch
Marketing Information: Advanced Gigabit PoE Managed Switch
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.
EdgeSwitch XP is available in multiple versions to meet your deployment needs.
EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch 8XP can eliminate the need for the following:
Intuitive Configuration Interface
EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch XP Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status
Advanced Features
EdgeSwitch XP is loaded with a variety of advanced features, including
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 5
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: AC Adapter
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor: Wall Mountable
Height: 1.1"
Width: 7.8"
Depth: 3.4"
Weight (Approximate): 8.82 oz
Miscellaneous
Package Contents:
Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: ES-5XP
Manufacturer Website Address: http://www.ubnt.com
Brand Name: Ubiquiti
Product Line: EdgeSwitch
Product Model: ES-5XP
Product Name: EdgeSwitch ES-5XP Ethernet Switch
Marketing Information: Advanced Gigabit PoE Managed Switch
Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.
EdgeSwitch XP is available in multiple versions to meet your deployment needs.
- EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support.
- EdgeSwitch 8XP is an industrialstrength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. Output voltage is controlled by the software.
- EdgeSwitch 16XP features dual EdgeSwitch 8XP systems in a rack-mountable, 1U form factor with 300 watts of power supporting up to 16 devices.
EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. For example, integrating one EdgeSwitch 8XP can eliminate the need for the following:
- 8 PoE adapters
- 8 power cords
- 8 power outlets
- 8 Ethernet patch cables
Intuitive Configuration Interface
EdgeSwitch XP provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch XP Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status
Advanced Features
EdgeSwitch XP is loaded with a variety of advanced features, including
- Port monitoring
- System connection and management services
- Virtual Local Area Network (VLAN) configuration
- Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)
- Jumbo Frame Support
- Ping Watchdog
- Configurable alerts
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 5
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: AC Adapter
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor: Wall Mountable
Height: 1.1"
Width: 7.8"
Depth: 3.4"
Weight (Approximate): 8.82 oz
Miscellaneous
Package Contents:
- EdgeSwitch ES-5XP Ethernet Switch
- Power Adapter
