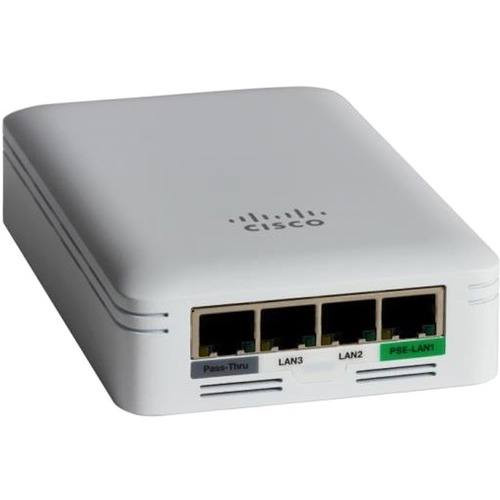

Cisco Business 145AC - Wireless Access Point - Wi-Fi 5 - 2.4 GHz, 5 GHz - Wall Mountable - CBW145AC-B

Calculated at Checkout

Image may not exactly match the product.

Out of Stock.

Request a quote for re-stock information.

Currently out of stock, pre-order may be available

Warranty Information
Limited Warranty - replacement - lifetime
Network Protocols:
IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Connectivity Type:
Product Line:
Cisco Business
Device Type:
Wireless access point
Installation Type:
Wall mountable
PoE Support:
Data Transfer Rate:
1 Gbps

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

    Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) technology allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time. This was typically referred to as Single-User MIMO (SU-MIMO).
  • Gigabit Ethernet ports
    Three local Gigabit Ethernet ports are available to securely connect wired devices to the network. Traffic from wired devices can be tunneled back to Master AP or be locally switched by the access point. One of these Ethernet ports can also provide Power over Ethernet (PoE) out to power a device such as an IP phone or a security camera.
  • Mesh technology support
    Mix and match Cisco Business mesh extenders or access points to increase Wi-Fi coverage throughout your business.
  • Flexible deployment
    Flexible deployment models supporting multiple concurrent use cases required by small businesses, including point of sale systems, surveillance cameras, guest access, and more.
  • Increased wireless performance
    The Cisco Business 145AC Access Point supports 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.
  • Wired access
    The Cisco Business 145AC Access Point allows wired access via a single Gigabit Ethernet port. It supports full operation modes using PoE 802.3af power. The 145AC comes with three local Gigabit Ethernet ports, one uplink Gigabit Ethernet port, and one passive pass-through RJ-45 port, allowing for a variety of connections.
  • Mounting
    This compact access point is designed with flexible mounting options in mind. You can mount it directly on the wall or to numerous global wall-junction standards and it is easy to install.

The Cisco Business 145AC Access Point provides converged access, ideal for small hospitality, retail, office, and educational environments. High performance MU-MIMO (2x2) access points deliver enterprise-grade wireless for small businesses. Embedded Power over Ethernet (PoE) port provides additional connectivity support.
Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.
