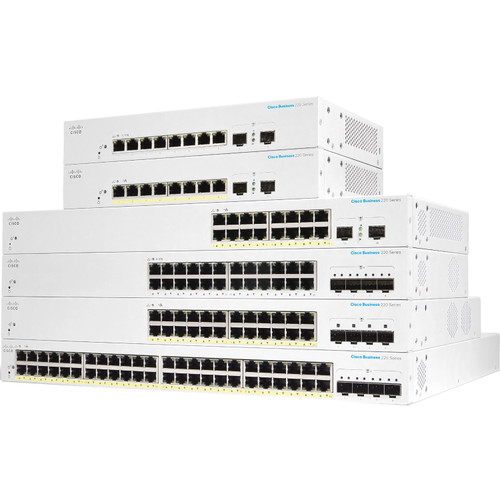

Cisco Business 220 Series CBS220-16T-2G Switch

Description

The Cisco Business 220 Series CBS220-16T-2G is a smart switch designed to provide reliable and secure network connectivity for small businesses. With 16 10/100/1000 Ethernet ports and 2 Gigabit SFP uplink ports, this rack-mountable switch delivers enterprise-level performance at an affordable price. It is an ideal solution for small businesses looking for a high-performance, manageable switch with advanced features to support their growing network needs.

Features and Benefits

Easy Configuration and Management

• Manageable: The switch is easily managed using the Cisco Business Dashboard, allowing for straightforward deployment, monitoring, and lifecycle management. The web-based interfaces are intuitive, enabling users without extensive IT expertise to configure and manage the switch efficiently.
• Management Protocols: The switch supports Layer 2 protocols and can be managed through a simple and intuitive web interface.

High Performance and Reliability

• Network Performance: With 16 Gigabit Ethernet ports and 2 Gigabit SFP slots for uplinks, the switch provides high-speed connectivity to ensure smooth and efficient data transfer. It supports both 1000Base-T and 1000Base-X network technologies, catering to different networking needs.
• Power Efficiency: Designed to be environmentally friendly, the switch consumes only 11.40 W of power, making it an energy-efficient choice for businesses.

Expandability and Flexibility

• Modular Design: The switch features 2 SFP (mini-GBIC) expansion slots, allowing for future scalability and flexibility in network design. This modular design enables easy integration of additional network devices as your business grows.

Robust Security

• Network Security: The switch includes various security features to protect your network from unauthorized access and potential threats, ensuring a secure networking environment for your business operations.

Technical Specifications

Management & Protocols

• Manageable: Yes

Network & Communication

• Layer Supported: 2

I/O Expansions

• Expansion Slot Type: SFP (mini-GBIC)
• Number of Total Expansion Slots: 2
• Number of SFP Slots: 2

Miscellaneous

• Package Contents:
  • Cisco Business CBS220-16T-2G Ethernet Switch
  • Power Cord
  • Mounting Kit
  • Quick Start Guide
• Country of Origin: China
• Environmentally Friendly: Yes

Power Description

• Power Source: Power Supply
• Frequency: 50 Hz / 60 Hz
• Power Consumption: 11.40 W

Interfaces/Ports

• Modular: Yes
• Uplink Port: Yes
• Total Number of Network Ports: 16
• Port/Expansion Slot Details:
  • 16 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot

Media & Performance

• Network Technology: 1000Base-T, 1000Base-X
• Ethernet Technology: Gigabit Ethernet
• Media Type Supported: Optical Fiber, Twisted Pair

Physical Characteristics

• Weight (Approximate): 5.47 lb
• Form Factor: Rack-mountable
• Height: 1.7"
• Width: 17.3"
• Depth: 8"

Model Information

• Model: Cisco Business CBS220-16T-2G
• Switch Type: Smart
• Port Configuration: 16 x 10/100/1000 Ethernet + 2 x Gigabit SFP (uplink)
• Rack-mountable: Yes
• Part Number: CBS220-16T-2G-NA
• Warranty: 3 Year Limited

The Cisco Business 220 Series CBS220-16T-2G switch is a versatile and powerful networking solution, perfect for small businesses seeking to enhance their network infrastructure with a reliable and manageable switch.
