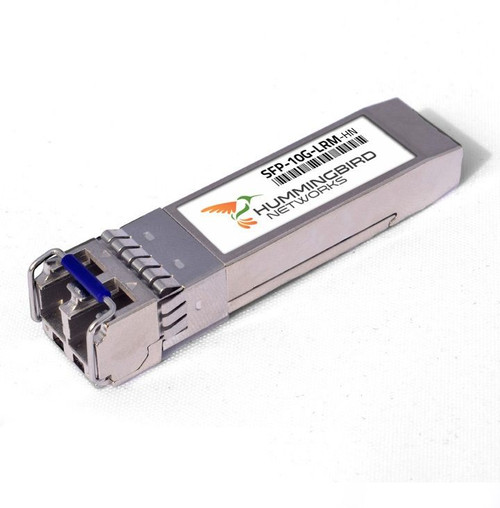

SFP-10G-LRM series single mode transceiver is small form factor pluggable module for serial optical data communications such as 1X2X4X8 Fiber Channel, IEEE 802.3aq 10GBASE-LRM. It is with the SFP+ 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1310 nm. The transmitter section uses a 1310nm FP laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features:
- Operating data rate up to 10.3Gbps
- 1310nm FP-LD Transmitter
- Distance up to 220m with MMF
- Single 3.3V Power supply and TTL Logic Interface
- Hot Pluggable
- Duplex LC Connector Interface
- Built-in digital diagnostic functions
- Operating Case Temperature: Standard: 0°C to 70°C
- Compliant with SFP+ MSA Specification SFF-8431
- Compliant with MSA SFP+ Specification SFF-8431
- Compliant with IEEE 802.3aq 10GBASE-LRM
Applications:
- 10GBASE-LRM 10G Ethernet
- Other optical links
[CIS-SFP-10G-LRM-HN]
