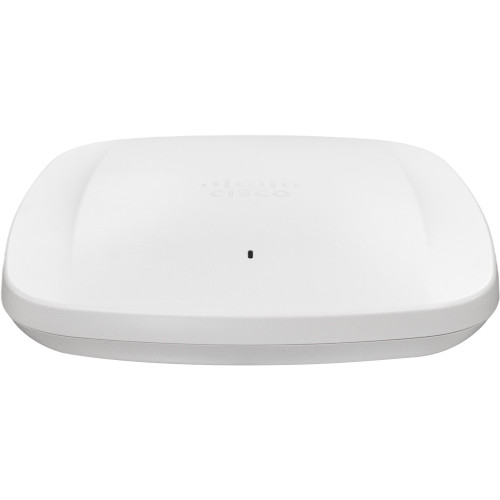

Cisco Meraki MR57 Ultra High-Performance Wi-Fi 6E Wireless Access Point - MR57-HW

Tri-band 802.11ax compatible access point with separate radios dedicated to security, RF management, and Bluetooth coupled with dual Ethernet ports and a USB port for added option to connect dual 5GHz radio for additional connectivity options. Software configurable flex radio architecture for 6GHz support MR57 supports a software defined flex radio which can be toggled between a 5GHz and 6GHz. This provides an option to operate MR57 in either a dual 5GHz configuration or a true tri-band configuration. Tri-band configuration unlocks the use of new spectrum in the 6GHz frequency range which provides additional channels to increase throughput and reduce interference and noise from legacy devices. 6GHz support ensures that the MR57 supports future technologies. High Performance 802.11ax compatible wireless The Cisco Meraki MR57 is a cloud-managed 4x4:4 802.11ax compatible access point that raises the bar for wireless performance and efficiency.

Designed for next-generation deployments in offices, schools, hospitals, retail shops, and hotels, the MR57 offers high throughput, enterprise-grade security, and simple management. The MR57 provides a maximum of 8.35 Gbps* aggregate frame rate with concurrent 2.4 GHz, 5 GHz and 6GHz radios. A dedicated fourth radio provides real-time WIDS/WIPS with automated RF optimization, and a fifth integrated IoT radio delivers Bluetooth scanning and beaconing. With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, the MR57 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice (Cisco WebEx) and high-definition video. Support for dual Ethernet ports to enable high availability MR57 will support dual 5 Gigabit mGig Ethernet ports for high availability or for link aggregation.

These ports can also be used for power-sharing to power up the AP and fully support the required functionality. The secondary Ethernet port can also be used for power and data sharing* or in a high availability mode* for added resiliency. MR57 and Meraki cloud management Management of the MR57 is through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming deployment complexity and time consuming staging process. Since the MR57 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24x7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems.

Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle. New features, bug fixes, and enhancements are delivered seamlessly over from the Dashboard. 4x4:4 MU-MIMO 802.11ax compatible 8.35 Gbps tri-radio aggregate frame rate 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated fourth radio Integrated Bluetooth Low Energy Beacon and scanning radio Dual 5Gbps mGig ethernet port support USB 2.0 host interface (Type A connector) with 9.5W power budget Enhanced transmit power and receive sensitivity Full-time Wi-Fi location tracking via dedicated 3rd radio Integrated enterprise security and guest access Application-aware traffic shaping Optimized for voice and video Self-configuring, plug-and-play deployment
